Cantilever beam - Online Calculator

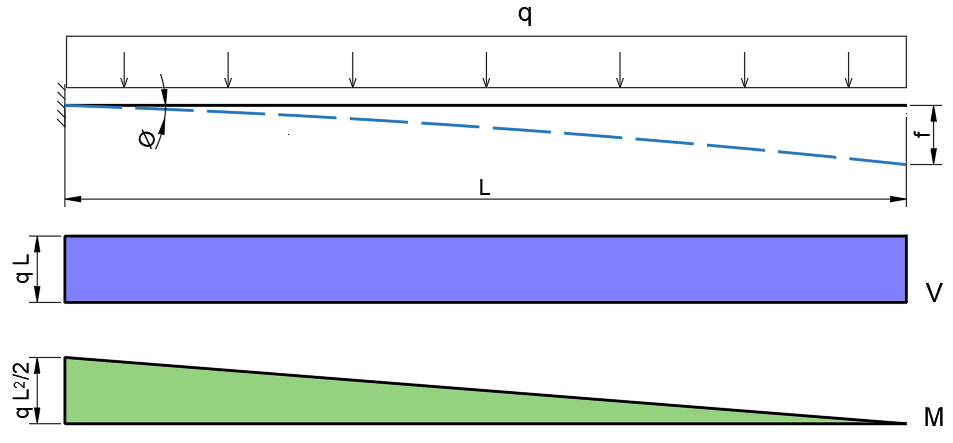

Compiling the form below, it is possible to calculate max bending moment, shear, maximum displacement and rotation of a cantilever beam with distributed uniform load
Input
$$q = $$
ex. \( kN/m, N/mm \) or \( kg/m \) etc.
$$L = $$
Span length ex. in \( mm, m, ft, in \) etc.
-
$$ E = $$
Young Modulus (ex. Steel \( 200-210 GPa\) )
J
Second Moment area ex. in \( m^4, mm^4, in^4, ft^4 \) etc.
Output Results
$$V = q \cdot L = $$
0
Max shear force on beam
$$M = \frac{1}{2} \cdot q \cdot L^2 = $$
0
Max bending moment
$$f = $$
NAN
Max displacement
$$\phi = $$
NAN rad
Max rotation
